Prostate Phantom with Catheter

Yezitronix' Model S-MM-2.3-with-Catheter Ultrasound Prostate Phantom is a multiple usage phantom developed for simulation and training.

Its ingenious and versatile design makes the S-MM-2.3-with-Catheter model a useful tool for simulation and training of catheter prostate medical procedures.

The prostate phantom construct mimics the exact 3D shape and size of:

40cc Prostate
Urethra
Seminal vesicle
Ejaculatory duct
Rectal wall
Partial bladder
Fat muscle tissues
Perineal Tissue
Numerous lesions located inside the prostate.

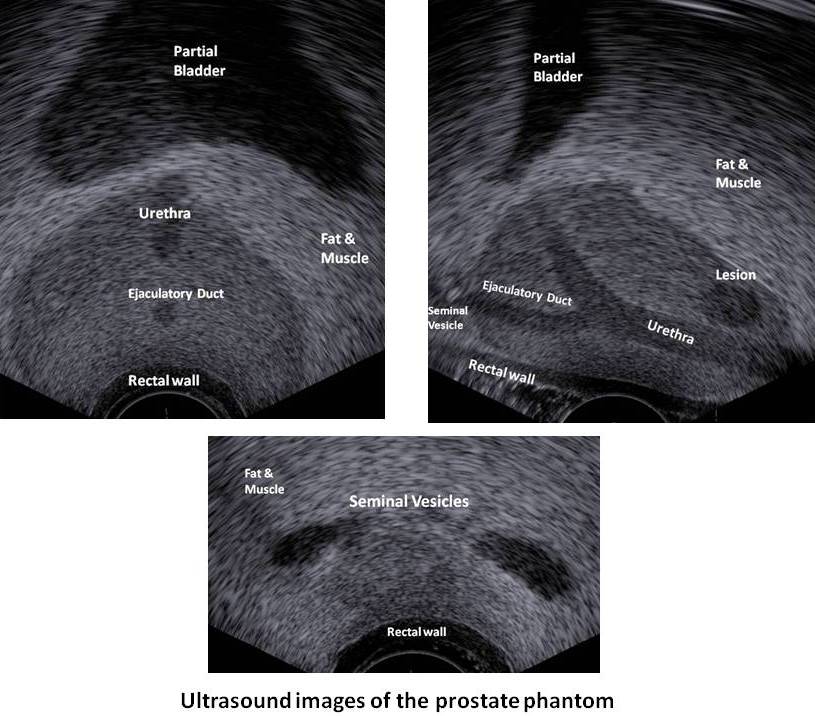

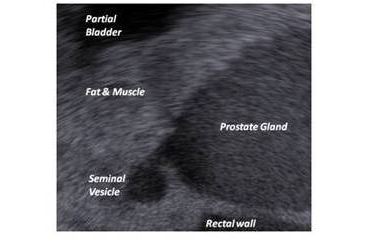

All organs & tissues are correctly adjusted to mimic exact ultrasound echogenicity seen by surgeon during OR procedures.

Suitable for:
OEMs. medical devices simulation, robotic system calibration, hospitals, clinics, med schools training and demonstrations.

Download PDF: Prostate Phantom with Catheter PDF

Prostate gland with visible lesion (pink)

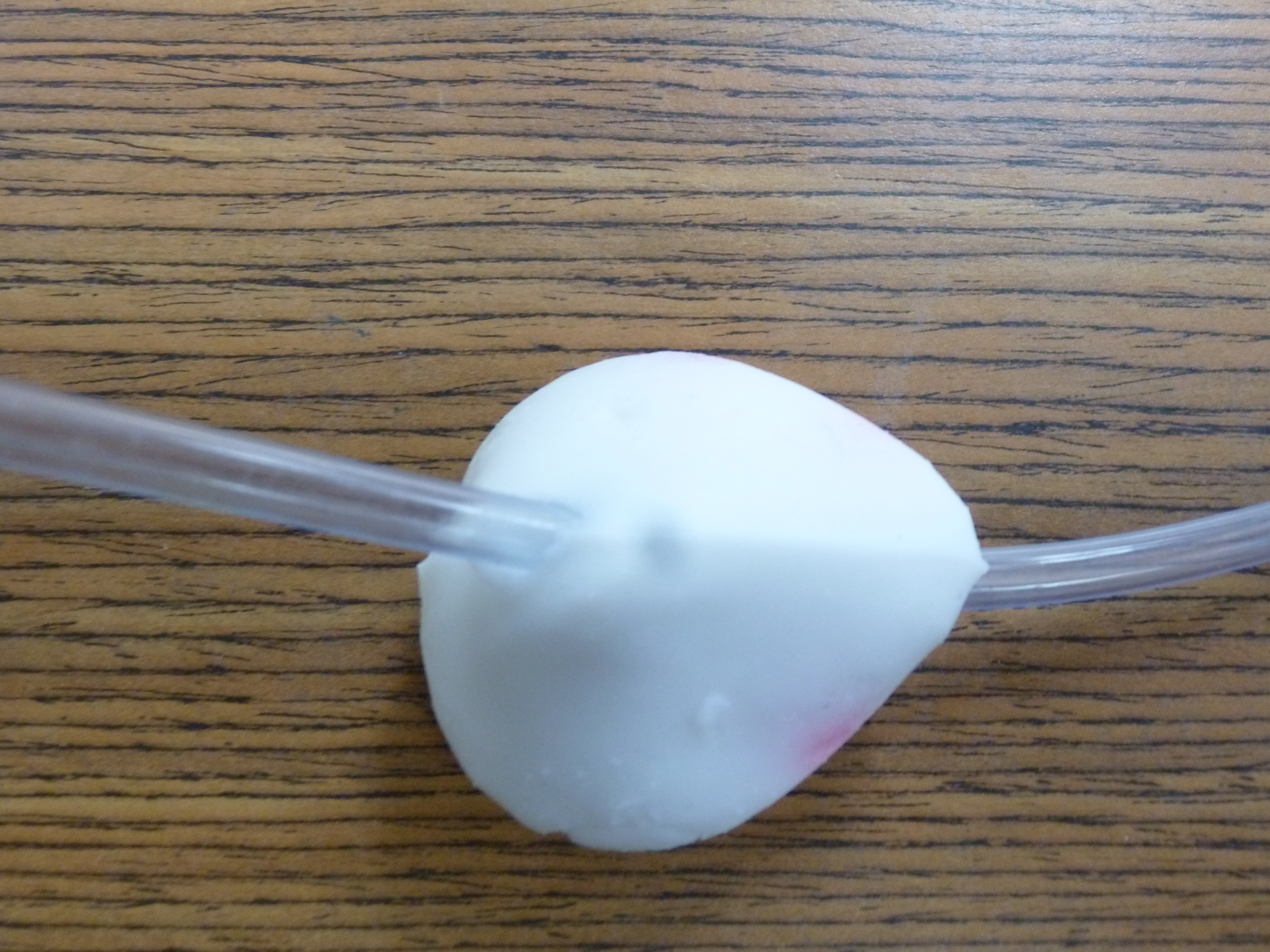

with real a catheter tube replacing the urethra

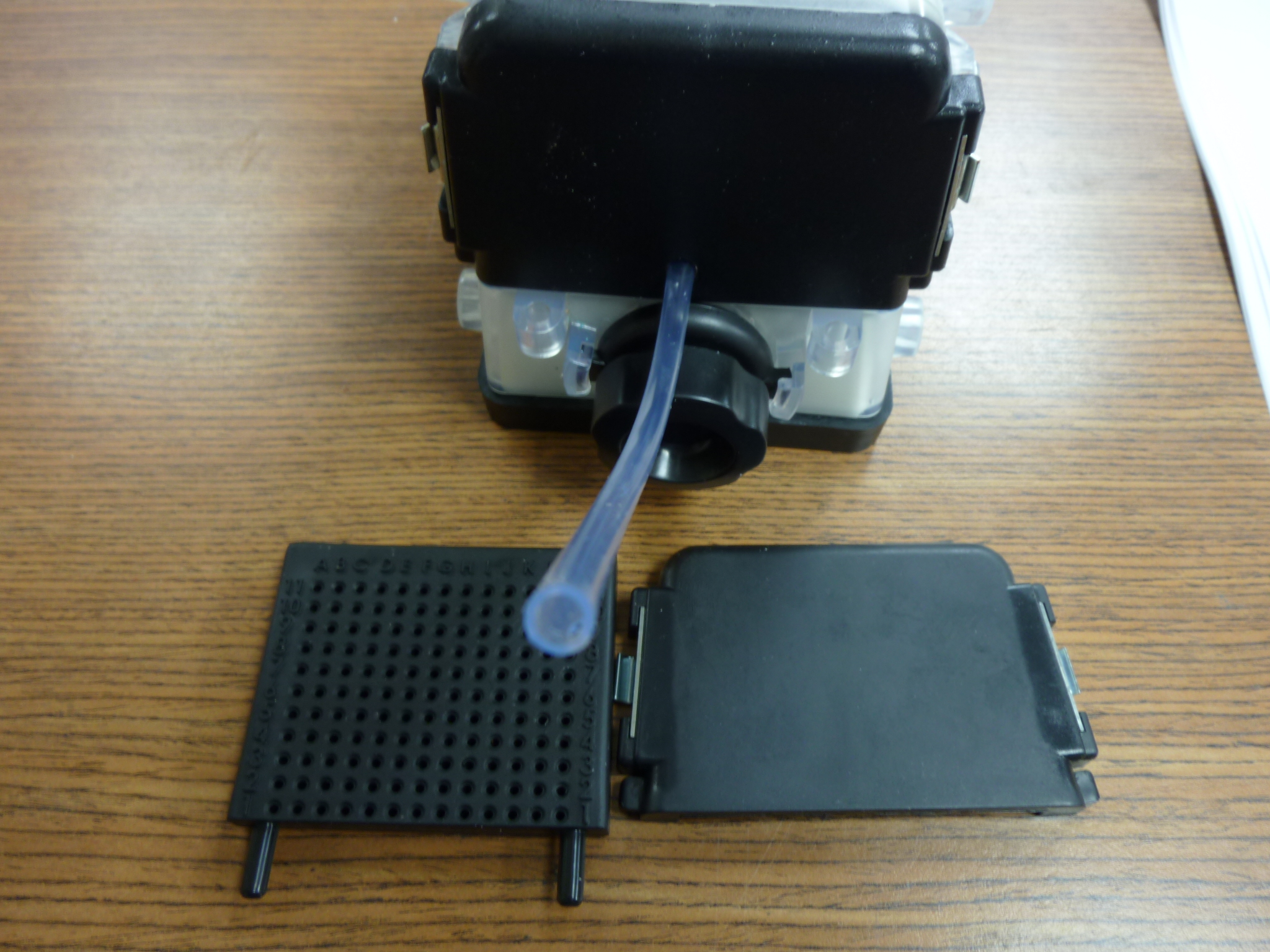

The Catheter Tubing coming out of the
removable front window through a matching hole

Sagittal MRI view of
the Prostate Phantom

Prostate Phantom
MRI Transverse

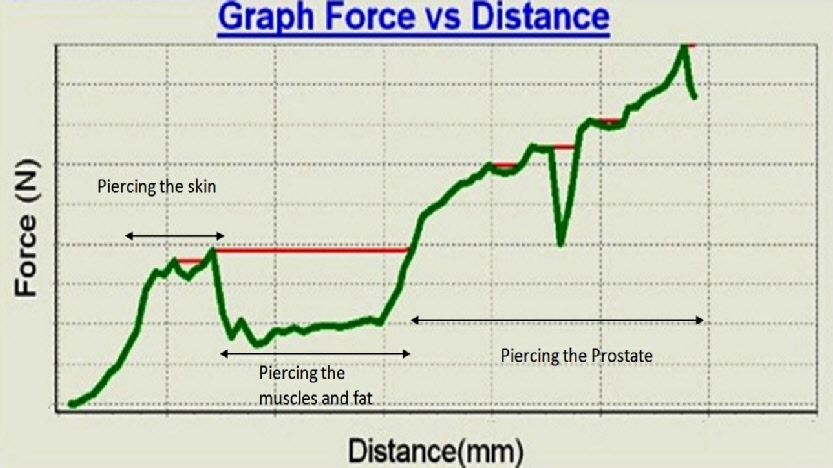

Real time graph (Prostate phantom device test bed) - of force as function of needle depth penetration.

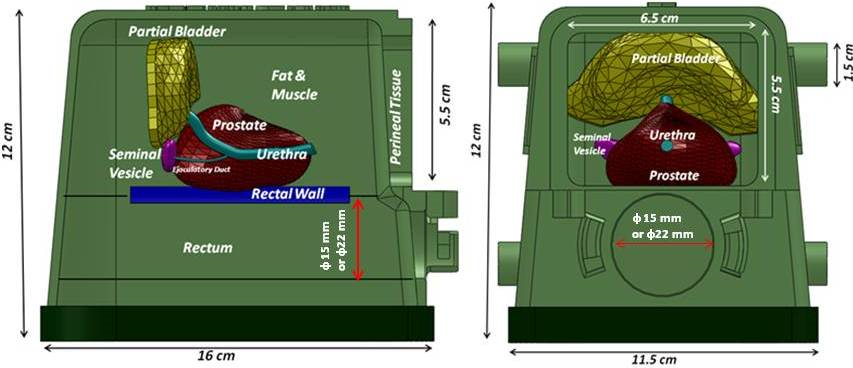

Internal tissues setup of the Brachytherapy prostate phantom. Diameter of 15 mm or 22 mm according to client demand.

Specifications :
Multi-layer material : each tissue or organ is independent and has its own characteristics defined by a real 3D shape, echogenicity level and mechanical properties.
Multiple usage of the same packaged phantom over an extended period of time.

Enclosure :
16(L) x 11.5(W) x 12(H), Material . PVC, PC and metal latches. Front upper window 6.5(W) x 5.5 (H), Probe input diameter . 3.5 (all units in cm)

Perineal Tissue :
65(W) x 55 (H) x 3mm thick, approximate mechanical response of human tissue

Fat & Muscles :
Approximate mechanical response of human tissue

Urethra :
6mm diameter and 61mm(L)

Ejaculatory duct :
4mm diameter 28mm (L)

Seminal vesicles :
2 of 25(L)x6(W)x 4mm(Thick)

Prostate gland :
40cc, approximate mechanical response of human tissue.

Rectal wall :
81(L)x 75(W)x2.5(thick)mm, approximate mechanical response of human tissue.

Partial bladder :
13.4cc

Lesions :
4 Elliptic 0.3cc

Template:
13 columns and 11 rows.
ø: 2 mm

Available Models :

Bi-plane (Side Fire) : S-BP-2.3

End fire mode : S-EF-2.3

Multi-modality mode (Ultrasound, CT, MRI) : S-MM-2.3

Without lesions : S-WL-2.3

Coloured components (Bladder, Urethra, Seminal Vesicles, Ejaculatory Duct) for Biopsy training : S-CC-2.3

With hollow Urethra for catheter insertion : S-HU-2.3

Custom design according to customer specifications : S-CD-2.3

Technology developed with the collaboration of the scientists from NRCC-National Research Council of Canada and surgeons at the department of urology at the London Health Sciences Centre in Ontario, Canada.
Patent Pending.
